TransparencyBC:
Architecture & Engineering Walkthrough

A technical breakdown of a public-records search platform: decoupling a Python/Flask search API, chunked Typesense indexing, structured document summaries, and signed document streaming for British Columbia FOI disclosures.

Role Full-Stack & Systems Developer

Architecture Python (Flask) · Typesense · PostgreSQL · Next.js

Project Status Live application at transparencybc.com (paid subscription required)

Walkthrough Scope Illustrative static walkthrough with screenshots from the project

System Boundaries & Access Model

Illustrative Walkthrough

Public Case Study (This Page)

Architecture walkthrough and static screenshots from the project available for technical and recruiter evaluation without requiring an account.

Commercial Service

Paid Live Application

The live service at transparencybc.com is a commercial application for researchers and journalists; searching and reading full documents on the live site requires active subscription credentials.

Private Codebase

Nonpublic Source & Pipelines

The document scrapers, OCR processing pipelines, and proprietary indexing scripts reside in private repositories and are not public.

01 / The Problem

Government disclosures distributed across unindexed scans

British Columbia government Freedom of Information (FOI) releases, Office of the Information and Privacy Commissioner (OIPC) orders, and judicial reviews contain important public records. However, records are published across separate portals as scanned, multi-page PDFs with varying visual quality and no centralized full-text search index.

Researchers and journalists frequently need to locate specific topics or cited statutory exemptions—such as FOIPPA Section 13 (policy advice), Section 14 (legal advice), Section 15 (law enforcement), Section 21 (third-party business interests), or Section 22 (personal privacy). Without centralized search, discovering relevant files required manually checking disclosure logs, downloading separate bundles, and reviewing pages by hand.

TransparencyBC was designed to address this workflow: an ingestion and OCR pipeline, a dedicated search API backed by Typesense and PostgreSQL, structured document summaries, and a web-based PDF viewer.

02 / Architecture & Data Flow

Decoupled search microservice and chunked indexing

To isolate search queries from batch scraping and OCR workloads, the system separates background data ingestion from the user-facing search API:

STAGE 01

Ingestion & OCR (Private)

Scrapers poll disclosure logs, retrieve release packages, and run OCR normalization to extract text and record metadata.

Python Scrapers OCR Pipeline Private Runner

STAGE 02

Search Service API

Standalone Flask service (search_service_api) querying Typesense for chunk-level text matching and PostgreSQL for document records and metadata.

Python / Flask Typesense PostgreSQL Corpus

STAGE 03

Next.js Application

Web frontend with API proxy routes, account authentication, structured document summaries, and signed PDF document streaming.

Next.js TypeScript Signed Streaming

Data flow lifecycle:

Ingestion: Scrapers collect release packages and record metadata (request number, ministry, date, exemptions cited).
Chunking & Indexing: Document text is segmented into searchable chunks in Typesense (bundle collection and response-package scope) so full-text queries match indexed chunks rather than reading multi-megabyte PDFs at request time.
API Proxying: Next.js backend routes (/api/search and /api/search-preview) forward requests to search_service_api, passing internal authentication headers and isolating backend credentials.
Signed Document Streaming: Document viewing routes verify access and stream PDF files with time-limited HMAC signatures and no-store cache headers instead of exposing static public storage links.

03 / Interface Walkthrough

Screenshots from the project

Below are static screenshots captured from the project interface, illustrating the search desk, structured document summary, and PDF viewer.

Static screenshot of the TransparencyBC Search Desk interface showing topic filters, date pickers, and saved search tags — Figure 1: Search Desk Interface (Static Screenshot) Static Screenshot · Search Interface

The Search Desk interface provides text search across BC Gov FOI releases, OIPC orders, and judicial reviews. Controls include source filtering, date ranges (From / To), and saved search tags (such as `housing`, `contractor`, and `site c`).

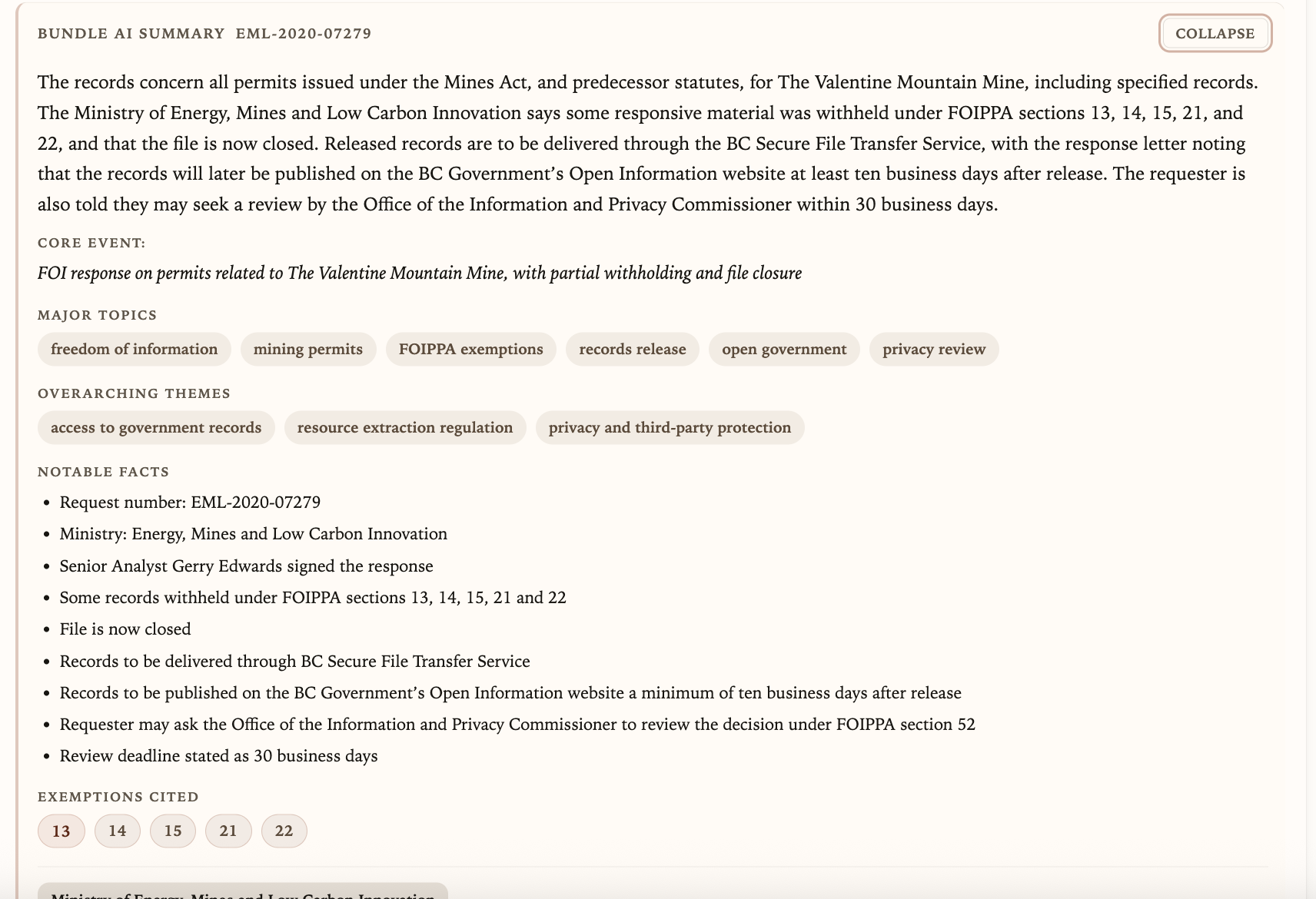

Static screenshot of a document bundle summary panel for FOI request EML-2020-07279 — Figure 2: Document Summary Panel (Static Screenshot) Static Screenshot · Document Metadata

Summary view for FOI request `EML-2020-07279` (Ministry of Energy, Mines and Low Carbon Innovation regarding Valentine Mountain Mine permits). Displays extracted metadata including core event, major topics, overarching themes, notable facts, and cited FOIPPA statutory exemptions (Sections 13, 14, 15, 21, and 22).

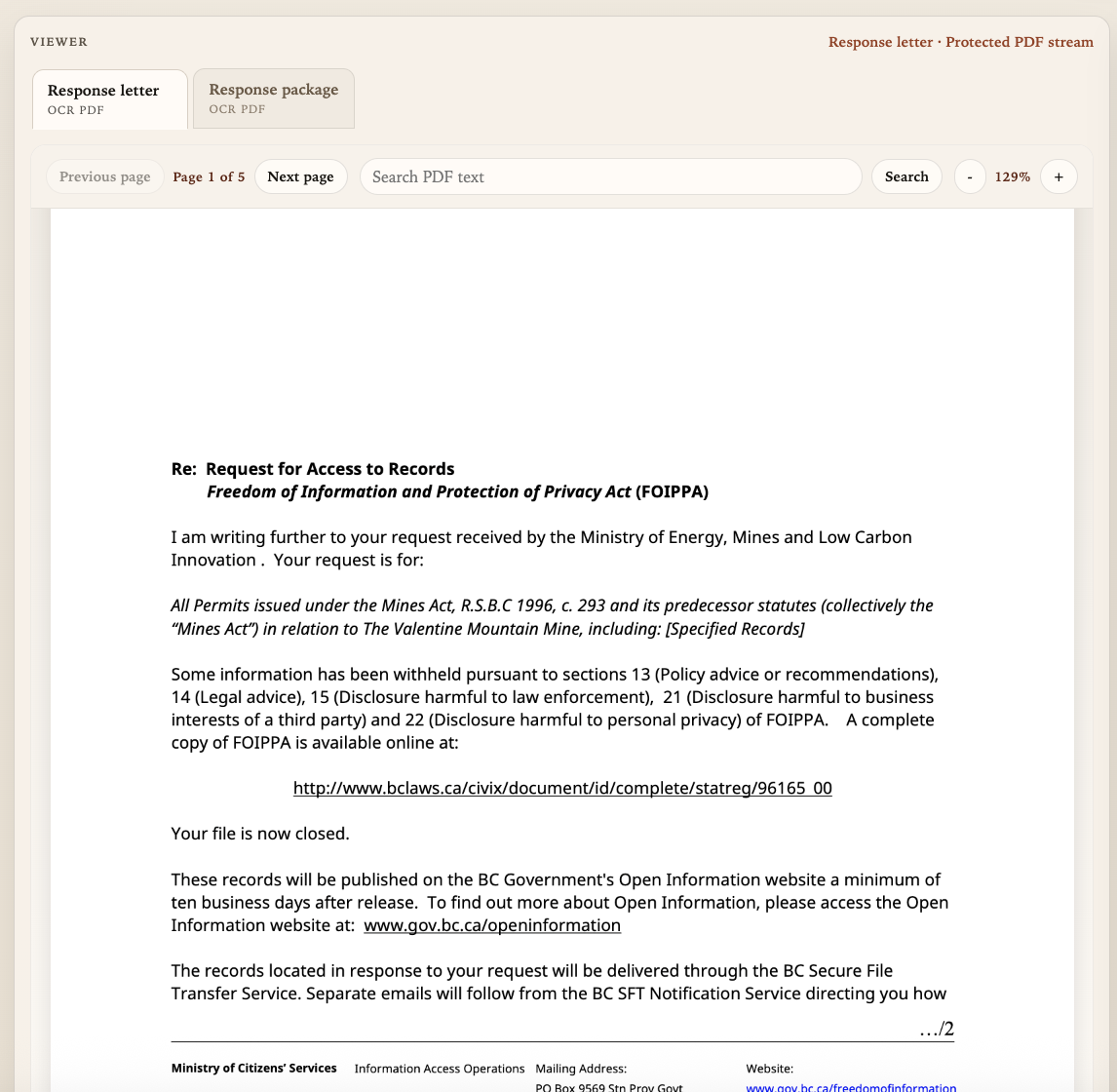

Static screenshot of the document viewer displaying an official FOIPPA response package with page navigation and zoom controls — Figure 3: Document Viewer (Static Screenshot) Static Screenshot · Document Viewer

Document viewer displaying page 1 of 5 of an official FOIPPA response package. Features tabbed navigation between response letter and package, page navigation, zoom controls, and in-document text search across OCR text.

04 / Engineering Decisions

Architectural trade-offs & implementation choices

1. Decoupled Search API vs. Ingestion Workload

Decision: Separated search_service_api into an independent Flask service, distinct from scraper and OCR tasks.

Tradeoff: Scraper tasks and OCR processing incur heavy CPU and disk I/O. Decoupling search API execution isolates resource contention so background ingestion does not directly tie up web query processes.

2. Chunk-Based Full-Text Indexing

Decision: Rather than indexing entire 200-page release packages as single monolithic documents, text is split into granular chunks stored in Typesense.

Tradeoff: Chunked indexing enables snippet highlighting and avoids reading or parsing full PDF files during search queries, keeping index memory usage predictable.

3. Signed PDF Streaming Routes

Decision: PDFs are streamed through backend routes using HMAC-signed tokens rather than exposing direct public storage links.

Tradeoff: Public storage links bypass application-level access controls and allow unauthenticated scraping. Signed streaming routes verify session permissions and prevent unauthenticated direct file access.

4. PostgreSQL State Separation

Decision: Maintained separate PostgreSQL databases for corpus metadata and user application state.

Tradeoff: Avoids SQLite concurrency locking under web queries and isolates schema changes between document corpus records and user account data.
